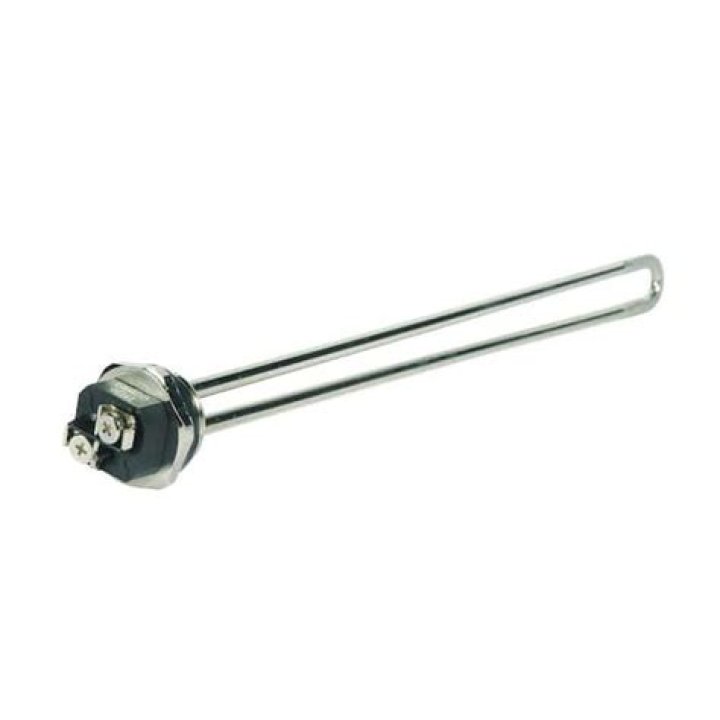

There are three types: screw in, bolt in and clamp in. They all have different wattage ratings and can work on either 120 or 240 voltage. Check your state and local codes before starting any project.
Are water heater elements Universal?
There are three types: screw in, bolt in and clamp in. They all have different wattage ratings and can work on either 120 or 240 voltage. Check your state and local codes before starting any project.
Are both elements in a water heater the same?
The basic operation of a two thermostat system (upper and lower) on an electric water heater of 240 volt supply is as follows: Only one element will come on at any one time. … Once that temperature has been reached, the thermostat will then flip power down to the lower thermostat.
How do I know what kind of element I need for my water heater?
- Examine your existing element.
- You will need to find out the voltage and the wattage. …
- Compare and match your results of volts and watts to the volts and watts columns below.
- Choose the volts that match your voltage 120 or 240.
Are top and bottom heating elements the same?
The top and bottom elements are controlled by separate thermostats. When the water on the top of the tank is hot, the top element turns off and the lower one heats. The upper and lower heating elements never come on at the same time.
Can you replace a 4500 watt heating element with a 5500 Watt?
Can I replace 4500 watt elements with 5500 watt? You can definitely replace 4500 watt with 5500 watt and get 4-7 gallons more hot water from a tank.
Can I replace a 3500 watt element with a 4500 watt element?
When selecting element, buy same wattage or less wattage… keep volts the same. It is ok to install higher watt up to 5500 on 4500 watt heater if breaker is 30 amp and wire is 10 gauge. It is ok to install lower watt: replace 4500 with 3500 as long as voltage is same.
Does it matter what wire goes where on water heater element?
No, it does not matter which wire goes to which heating element terminal in this case – electricity can flow in either direction.
Should you replace both water heater elements at the same time?
Both heating elements generally do not work simultaneously. The only way to know which one is working would be to monitor the voltage at each heating element. … I recommend replacing both elements since you have to drain the tank to clean flush the sediment out anyway.
Are baking elements Universal?
bake element can be used on some brands of Frigidaire Ranges / Ovens / Stoves and other brands. This is a universal bake element can be used on many Ranges / Ovens / Stoves.
Article first time published on
Do electric water heaters have 2 elements?
Electric tank water heaters have been around for a long time, but dual-element models take a slightly different approach. … With a dual-element water heater, there are two heat elements – one on the top and one toward the bottom of the tank. Each element has its own thermostat, and only one element runs at a time.
Do all hot water heaters have 2 elements?
All electric water heaters have at least one element positioned at the bottom of the tank to ensure all of the water is heated. The default temperature of a heating element is typically set to 120 degrees Fahrenheit.
Why does a water heater have 2 elements?
With two-element designs, one element heats the water at the top of the tank while the second element heats the water within the bottom of the tank. Electric heaters feature fewer parts than gas models, but a basic understanding of how two-element models function can reduce the time needed to diagnose a problem.
What size socket fits a water heater element?
If you have a 1/2″ drive socket you can use a Drive x 1-1/2 inch socket. The socket’s opening will fit the hex end on all standard residential water heater elements. To remove a water heater element without an element wrench, you simply place the 1-1/2 socket over the head of the heating element.
How many amps will a 4500 watt 240v water heater element pull?
In an electric circuit of 240 volts, 4500 watts is equivalent to 18.75 amps.
What causes water heater elements to burn out?
Sediment Buildup Minerals in hard water (such as calcium and magnesium) can lead to buildup in your water heater. In some cases, mineral sediment collects at the bottom of the tank, preventing heat transfer to the water. The affected heating elements get forced to work harder and eventually burn out.
What size breaker do I need for a 4500 watt water heater?
To answer the common homeowner query, “What size breaker do I need for a 4500 watt water heater?”, you’ll need either a 25-amp or 30-amp circuit breaker.
Is more watts better for water heater?
It only uses significant energy when the water is running. The higher the setpoint and the higher the flow rate, the more electricity it uses. If I use a little hot water like in my bathroom sink, it uses less than 8000 watts. If there is no water flow, it still uses about 25 watts to keep the computer running.
How many amps does a 5500 watt element draw?
So, 5500 watts / 220 volts X 0.80 = 20 amps.
Do I have to drain water heater to change element?
It is possible to change your water heater’s heating element without draining your tank. Although, keep in mind that it can be a bit more challenging.
Is there a positive and negative on a hot water heater element?
Do water heating element terminals have polarity? What is the question? It doesn’t matter which post you use for the positive and negative wires, they are the same.
Can you wire a hot water heater element backwards?
Can you wire a hot water heater backwards? Yes, you can get it with minimal effects. If the 220v heater has red and black wiring, it can be wired backwards.
What happens if you wire a heating element backwards?
By reversing these connection, you are switching the neutral . The ungrounded side of the circuit ( hot) is connected to the heater and can only be interrupted by the circuit breaker .
Can you use a different bake element?
The answer in most cases is yes but only within the manufacturing company and for specific models. Let’s take a look at baking and broiling heating elements.
Can oven heating elements be replaced?
An oven heating element is an essential, simple part that is easy to replace in most electric ovens and ranges. … You can buy a replacement oven element through the oven manufacturer or through online appliance parts retailers.
How much does a baking element cost?
An oven element will cost you on average a cheap $20 to $25 dollars, possibly less. This task should take about 20 minutes in total.
Can you use an upper thermostat on a single element water heater?
An upper thermostat of 240V can’t be used with single element water heater as the single element thermostat looks similar to the upper thermostat of dual element thermostat. Care must be taken for replacing the appropriate thermostat.
Which is better single or twin element hot water system?
Advantages. The dual element is the more efficient of the two water heating systems. It heats water quicker than a single element unit, as water is moved from one end of the tank to the other, whereas a single element system heats from the bottom up only.
