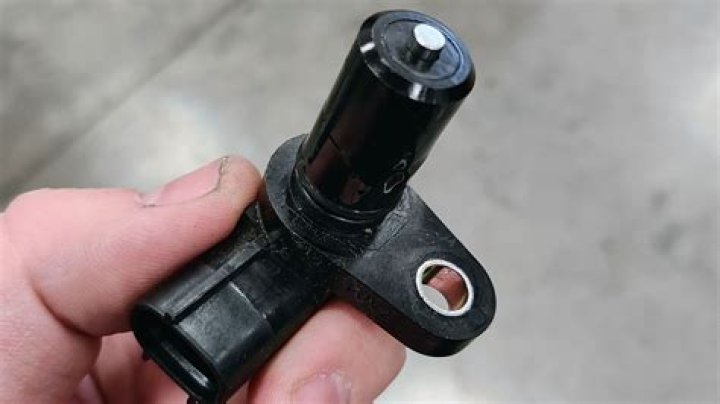

How do you fix a speed sensor circuit?
Repairs for the P0720 trouble code include:
- Replacement of the output speed sensor.
- Replacement of the input speed sensor.
- Replacement of the wires or connectors.
- Drain and refill of the transmission fluid.
- Replacement of the PCM.
How much is a output shaft speed sensor circuit?
The average cost for vehicle speed sensor replacement is between $250 and $295. Labor costs are estimated between $106 and $133 while parts are priced between $144 and $162. This range does not include taxes and fees, and does not factor in your specific vehicle or unique location. Related repairs may also be needed.
How do you test a speed sensor circuit?
You can test your VSS to make sure it’s functioning properly by using a device called a multimeter. Start by disconnecting and removing the VSS from your engine so you can test it. You can then connect it to a multimeter and set the multimeter to the AC setting.
How do I fix code P0722?
What repairs can fix the P0722 code?
- Repairing or replacing a damaged or faulty transmission output speed sensor.
- Repairing or replacing a damaged or faulty engine coolant temperature sensor.
- Repairing or replacing a damaged or faulty shift solenoid.
- Flushing the system and changing the transmission fluid.
What does the transmission output speed sensor do?
A transmission speed sensor calculates the transmission gear ratio when in use. A car has two speed sensors: the ISS and the OSS, working together to show the transmission data to the car’s powertrain module. The ISS sensor monitors the input shaft’s speed.
What happens when output speed sensor goes bad?
Therefore, a failing speed sensor will have a direct impact on automatic transmission operation. One of the most common signs of a bad speed sensor is abnormal automatic transmission operation. If the VSS is faulty, the transmission may exhibit symptoms such as delayed shifts, hard shifts, and limited gear operation.
How do you fix an output speed sensor no signal?
What Repairs Will Fix P0722?
- Replace output speed sensor.
- Replace input speed sensor.
- Repair or replace damaged wiring and/or connectors.
- Replace the transmission fluid temperature sensor.
- Change transmission fluid and filter.
- Fix transmission fluid leaks.
Does the speed sensor affect the transmission?
What does a output speed sensor do?
The output speed sensor measures how fast a vehicle moves and sends that information to other vehicle systems. The transmission control unit uses the speed to determine when to change gears, adjust the torque converter and display the vehicle’s speed in the speedometer.
Where is the output speed sensor located?
Locate the speed sensor. The sensor is found on the bottom of the transmission and can be identified as a small plug that is sticking straight out of the transmission with an electrical connector plugged into it.
What is the trouble code for output speed sensor?
P0720 is a diagnostic trouble code (DTC) for “Output Speed Sensor Circuit Malfunction”. This can happen for multiple reasons and a mechanic needs to diagnose the specific cause for this code to be triggered in your situation. Our certified mobile mechanics can come to your home or office to perform the Check Engine Light diagnostic for $70.00.
How does the output of a speed sensor work?
The placement of the source, disk, and detector is such that the slotted disk interrupts or passes the light from source to detector, depending on whether a slot is in the line of sight from source to detector. The light detector produces an output voltage whenever a pulse of light from the light source passes through a slot to the detector.
How tall does a wheel speed sensor need to be?
The setup simulates the signal produced in a wheel speed sensor. Tests have shown that a variation in height of only about .010 inch on a single tooth can cause a noticeable fluctuation in the sensor’s output signal! One way to check a suspicious wheel speed sensor is to measure its output voltage.
How does a variable reluctance speed sensor work?
Variable reluctance sensors output a voltage when a ferrous metal on a toothed trigger wheel passes by the sensor, creating a current on the coil of wire inside the sensor. These sensors produce a sine wave signal as the metal approaches the coil, then moves away.
What does output speed sensor malfunction code mean?
It means that the powertrain control module (or transmission control module) perceives a problem with the output speed sensor (OSS) or its circuit. The sensor in question is the one responsible for the display of real-time vehicle speed. The powertrain control module (PCM) receives input from multiple sensors.
How does the output shaft speed sensor work?
Output shaft speed sensor – The OSS sensor operates by passing an electrical current through the sensor, as the reluctor ring or gear on the end of the transmission output shaft rotates, the voltage changes in relation to the speed.
How much current does a wheel speed sensor show?
A good wheel speed sensor will generally produce an alternating current (AC) voltage reading of 50 to 700 MV when the wheel is spun by hand at about one revolution per second.
Where is the transmission input speed sensor located?
Users have reported p0715 for the following makes: Mercedes Benz (especially on a Mercedes Benz ML320), Ford, Nissan, Mazda, and Mitsubishi. An input speed sensor reads a reluctor ring. Located on or inside your vehicle’s transmission, the sensor is tasked to monitor your vehicle’s transmission input speed.
