How does electric through frame slide out system work?

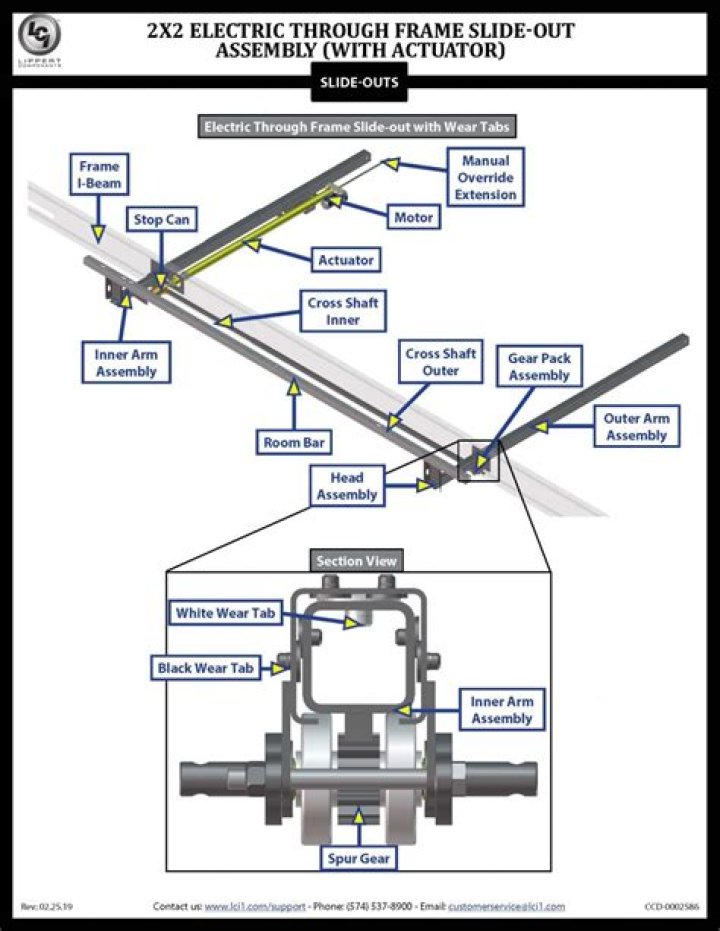

Description The Lippert Electric Through Frame Slide-out System is a rack and pinion guide system, utilizing an electric ball screw actuator to move the room assembly. The motor drives the ball screw in a forward and backward motion to move the slide room in and out.
How do you install a sliding carriage on a power tool?
• Slide the Sliding Carriage arms through the Bevel Neck for approximately half of their length. • Insert the Sliding Carriage Locking Screw into the threaded hole in the Bevel Neck, ensuring that the anti-vibration spring is fitted underneath the hand knob.
How does the Lippert through frame slide out system work?
Description The Lippert Electric Through Frame Slide-out System is a rack and pinion guide system, utilizing an electric ball screw actuator to move the room assembly. The motor drives the ball screw in a forward and backward motion to move the slide room in and out. The actuator comes equipped with an automatic clutching system.
How to manually open an electric slide on a travel trailer?
Make sure the trailer is level before operating the slide-out. Check the battery and verify it is fully charged and connected to the electrical system. Press and hold the wall-mounted In/Out switch. If the slide does not extend or retract, use the manual override to extend or retract the slide-out. Find the slide-out motor.
What do you need to know about electric slide out?
Simply take the crank handle (through-frame models) or wrench, ratchet or drill with a nut driver (in-frame models) and rotate it clockwise to retract and counterclockwise to extend slide-out. It is important to note that you DO NOT need to attempt to disengage the motor as the actuator is “manual ready” Just hook up and crank.
How do you turn the slide out system on?
STEP 1 – Turn the slide-out system key switch to ON. STEP 2 – Press and hold the room direction switch in the OUT position until the room is fully extended and stops moving.
How to troubleshoot the Lippert electric slideout system?
TROUBLESHOOTING The Lippert Electric Slideout Systemis only one of four interrelated slideout room system components. These four components are: chassis, room, coach, and Lippert Electric Slideout System. Each one needs to function correctly with the others or misalignment problems will occur.
