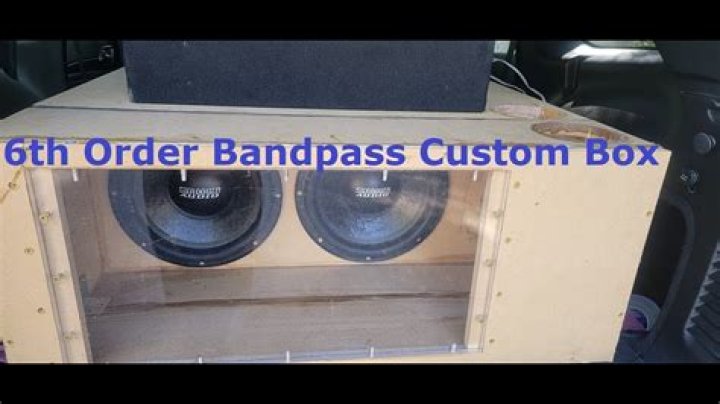

A bandpass enclosure is, by definition, simply a sealed enclosure with an acoustical filter in front of it that serves to limit the upper-end of the driver’s frequency response. This natural limiting of the high-frequency response of the system makes the selection of midbass drivers critical.
What are the advantages of a bandpass box?
The only sound from the woofer exits through the vent in one of the chambers. One of the main advantages of a bandpass enclosure is the sound can be directed directly from the port into a vehicles cabin through a smaller hole than is normally required.
Is a bandpass louder than ported?
a bandpass box will usually be more efficient and thus louder than ported or sealed. However, bandpass don’t play as deeply as they are usually tuned around 45-70Hz which may be loud but pretty much louds lousy doing it. If all you want is loud though, look at a 4th or 6th order bandpass box.
Is a bandpass box any good?
The good is that the bandpass design is much louder than either a sealed or ported box. The bad is that the bandpass box only works for a certain ‘band’ of frequency and anything outside of that band is hushed. The iffy thing is that the bandpass box design typically hides distortion.
What does a bandpass do?
In a receiver, a bandpass filter allows signals within a selected range of frequencies to be heard or decoded, while preventing signals at unwanted frequencies from getting through. Signals at frequencies outside the band which the receiver is tuned at, can either saturate or damage the receiver.
What's the difference between bandpass box and ported box?
The difference between a bandpass and a regular ported box is that in a ported box, the port is in the same enclosure as the rear of the driver, whereas with a bandpass the port and the rear of the driver are in separate enclosures. Bandpass boxes are ideal for genres like hard rock, metal, hip-hop, and reggae.
Do ported sub boxes hit harder?
Ported boxes use a vent (called a port) to reinforce low bass response. You get more output than you would from a sealed box at any given amplifier wattage. … Ported boxes can deliver deeper bass than sealed boxes, though they need to be much larger than sealed enclosures to accomplish that.
What is an isobaric subwoofer?
Isobaric loudspeaker enclosure configuration refers to systems with two identical transducers operating simultaneously with a common enclosed air adjoining one side of each transducers diaphragm. … This will in effect make all your speaker enclosures half as big as they would normally be for any particular driver.
Why is it called a bandpass box?
In a bandpass enclosure, the front of the speaker fires into a chamber which is tuned by a port. … The name “bandpass” is really pretty descriptive in that it refers to the fact that the enclosure will only allow a certain frequency “band” (range) to “pass” into the listening environment.
What happens if a sealed box is too big?
Sealed boxes will generally losen the air pressure inside, thus slowing down the woofer, thus reproducing a lower frequency. However after a certain point, it will become sloppy uncontrolled, and sound like trash.
Article first time published on
What type of subwoofer box is best?
Sealed boxes are the best for small to medium vehicles with little space in the car. It’s also more economical to go for a sealed box if you only have a single subwoofer speaker. Consider going for a ported or a bandpass box if you are an audiophile who loves playing loud music during long car rides.
What are bandpass signals?
A bandpass signal is a signal containing a band of frequencies not adjacent to zero frequency, such as a signal that comes out of a bandpass filter. A signal coming out of a band pass filter is an example of band pass signal. And an RLC circuit is an example of band pass filter.
What do low-pass high pass and band pass filters do?
A low-pass filter allows only signals at low frequencies through. A high pass filter allows only signals at higher frequencies to pass through. … In reality, band pass filters may not completely block unwanted signals. Signals that are not in the pass band may simply be attenuated, or reduced significantly in amplitude.
What does a bandpass filter do to sound?
A bandpass filter passes frequencies between its two cutoff frequencies, while attenuating those outside the range. A band-reject filter attenuates frequencies between its two cutoff frequencies, while passing those outside the ‘reject’ range.
What does 4th order bandpass mean?
Home / Car Audio / Subwoofer Enclosures / Fourth Order/Bass Reflex and Bandpass. A fourth order enclosure (vented box) is a sealed enclosure with the additon of a port tuned to a specific frequency. The port extends the low frequency response of the basic sealed enclosure usually providing a lower cut-off frequency.
How is bandpass box calculated?
- Determine the volume of the box.
- Select Box Calculator from the Box Calculator menu. …
- Enter any additional volume. …
- Set the length and width dimension the fit the speaker and port.
- Click the Calculate button to determine the dimensions.
Which way should subwoofer port face?
For the best sound quality, the subwoofer should be placed with the speaker facing out to the room, and the port should be away from a wall. Bass waves travel in all directions, but it’s important to have the speaker facing your main listening area.
What hits harder 2ohm or 4ohm?
A subwoofer with a lower electrical resistance produces a louder sound than one with a high electrical resistance, which means that 2ohm subwoofers are louder than 4ohm ones.
How do I get more bass out of my subwoofer?
- Remove the distortion.
- Flatten the signal, open the low-pass filter.
- Adjust the subwoofer gain and low-pass filter.
- Adjust the bass boost and subsonic filter.
- Match the subwoofer level to the receiver volume.
What sounds better ported or sealed?
Sealed enclosures reproduce the low frequencies more accurately than ported enclosures because the air inside the box acts like a shock absorber, allowing the subwoofer to move back and forth in more control.
Does shape of subwoofer enclosure matter?
I’ve heard mentioned that you should try to include at least one angle in the design to eliminate the possibility of standing waves inside the enclosure, but the general consensus around here is that the shape doesn’t matter.
Does a bigger box mean more bass?
the bigger the box, the lower they will hit. to a point. when you get to big it will all just sound like sh.it. if you want really deep bass look at the specs for the box that they tell you and just go slightly bigger if you want.
Can you port a sub box?
You can place a port in your now sealed box. A simple hole saw and drill will do the trick nicely. Youll have to determine the net cubic air space. (net= space left after the subwofer is in) Then determine what tune frequency you want to port the subwoofer at.
Which loudspeaker has an air chamber?
The Isobaric loudspeaker configuration was first introduced by Harry F. Olson in the early 1950s, and refers to systems in which two or more identical woofers (bass drivers) operate simultaneously, with a common body of enclosed air adjoining one side of each diaphragm.
What happens if a sealed box is too small?
As the size of the enclosure increases, the mechanical limits of the woofer will be easier to reach. If the box is too small (by a reasonable amount) add power. … If the port becomes too small, it may result in port noise, or allow the woofer to simply unload. Do not underestimate the sub / port arrangement.
What frequency should I set my speakers?
On-wall or Tiny ‘satellite’ speakers: 150-200 Hz. Small center, surround, bookshelf: 100-120 Hz. Mid-size center, surround, bookshelf: 80-100 Hz. Large center, surround and bookshelf: 60-80 Hz.
Which subwoofer box is best for bass?
- Bbox A144-10CP Dual 10” Sealed Subwoofer Enclosure. …
- Car Audio Dual 12″ Vented Subwoofer Stereo Sub Box. …
- QPower QBOMB12VL 12″ Dual Vented Ported Car Subwoofer. …
- Bbox E12S Pro-Series 12” Single Sealed Subwoofer Enclosure. …
- Skar Audio AR1X12V Single 12″” Universal Subwoofer Box.
What size subwoofer has the deepest bass?
15-inch subwoofers offer the most powerful and deepest bass owing to their big size. They, however, lack the tight responsiveness of their small counterparts. These subs will take much of your passenger or cargo space which is why they are commonly used in large trucks and SUVs.
Is MDF good for subwoofer boxes?
MDF is the most popular, and the best overall material for subwoofers for many reasons. This manufactured wood is very durable. It’s dense and thick, which helps bring out the best sound quality from your subwoofer, rather than a thinner board that would allow the sound to resonate and distort.
What is bandpass frequency?
A passband is the range of frequencies or wavelengths that can pass through a filter. For example, a radio receiver contains a bandpass filter to select the frequency of the desired radio signal out of all the radio waves picked up by its antenna.
What is necessary for bandpass digital communication?
For distortionless bandpass transmission, it is only necessary to have a transfer function with constant amplitude and constant phase derivative over the bandwidth of the signal. In other words, for bandpass signals the requirement that the linear phase must pass through the origin can be relaxed.
