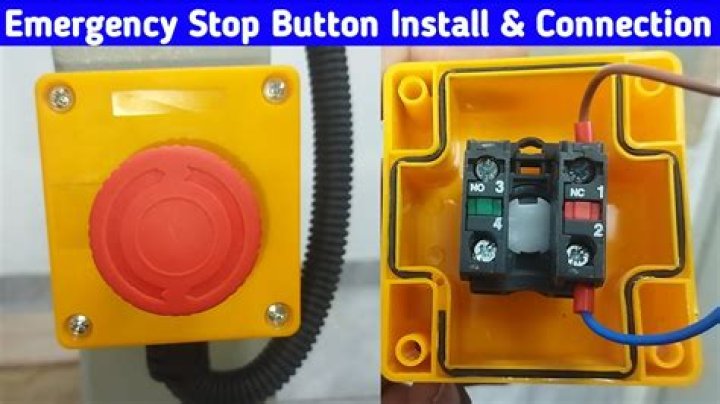

What is the function of the emergency stop button?

a func­tion that is inten­ded to avert harm or to reduce exist­ing haz­ards to per­sons, machinery, or work in pro­gress. a red mush­room-headed but­ton that, when activ­ated, will imme­di­ately start the emer­gency stop sequence. One more [2, 6.3.5]:

Which is the start / stop push button control station?

Atex certified 2 gang standard control station, start (green I) and stop (red) pushbuttons c/w 1 x normally open or normally closed contact, IP65 glass fibre reinforced polyester enclosure. explosion protection: Ex II 2GD, Ingress protection: IP 66, Ambient temperature: -20 ºC …..+40ºC, Cable entries: 1 x M25

What do you need to know about emergency stop?

That phrase requires that every emer­gency stop sys­tem has a second dis­crete action to reset the emer­gency stop sys­tem. Pulling out the e‑stop but­ton and hav­ing power come back imme­di­ately is not OK. Once that but­ton has been reset, a second action, such as push­ing a “ POWER ON ” or “ RESET ” but­ton to restore con­trol power is needed.

How does a start stop on an electric motor work?

a start stop electric motor on the start is it normaley open a motor is controlled by a start button (no) and a stop button (nc) when the start button is depressed once the motor will start it will run for five minute and then it will stop or it can be stopped by depressing the stop button once after the motor runs

What happens when you reset the emergency stop button?

One of the key points of the European and North American standards is that resetting the emergency stop device should not cause a restart command. This means that in order to restart the equipment, a person must initiate another start command. This is typically accomplished in a 3-wire system.

What does emergency stop push button 4.2.2 mean?

Section 4.2.2 indicates that if an emergency stop push button is a twist-to-reset variety then the “direction of unlatching shall be clearly identifi ed”. Most suppliers of push buttons accomplish this in one of four ways: 1. Use of arrows molded into the button caps with a diff erent texture.

Which is an example of an emergency stop device?

The actuator of an emergency stop device is the component that is actuated by a person. Examples of actuators include – mushroom-type push buttons, ropes, wires, etc.… For the purposes of this paper, however, any further references to an Emergency Stop will mean a mushroom-type push button. 2 | Emergency Stop Push Buttons

Why do I have to push the start button again?

If the relay is to be restarted, the START button must be pushed again to provide a complete circuit to the relay coil. The only other logic condition that can occur in this circuit is caused by the motor connected to the load contacts of relay M. Assume the motor is con- nected in series with the heater of an overload relay
